Module Management

Managing and extending report modules

The Ecological Report is built from separate report sections, here referred to as modules. Each module is a small report component that can contain explanatory text, R code, or both. This modular structure allows users to extend the report by adding new sections, modifying existing ones, or changing the order in which sections appear.

A new module is defined in a YAML file and then registered with camtrapReport using add_Module(). After the module has been added, it is useful to test it before generating the full report.

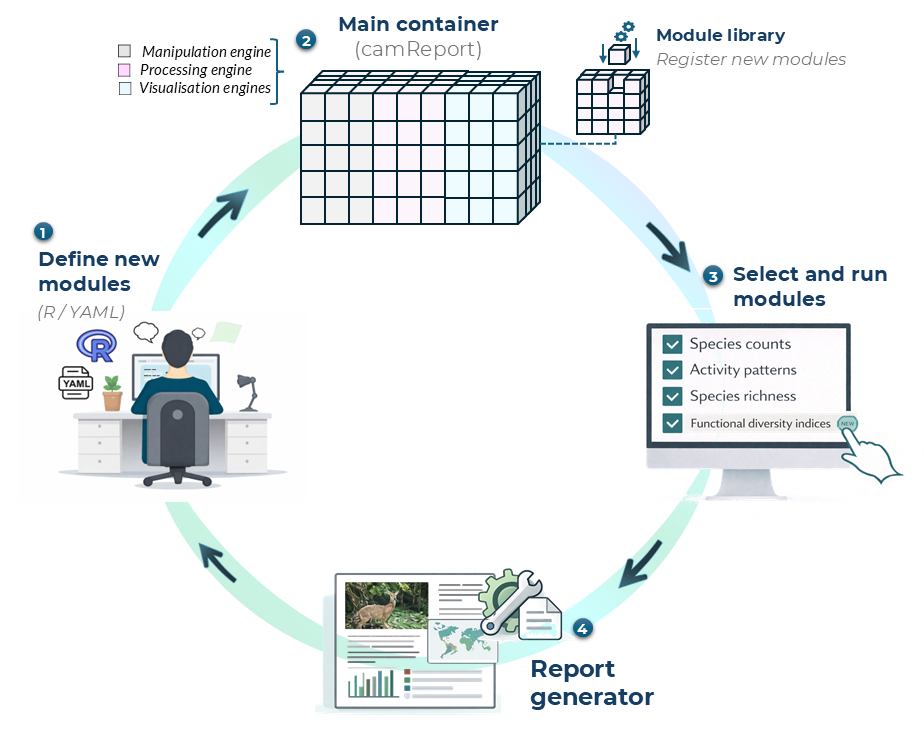

Figure 1. Modular workflow for defining, registering, selecting, and running report modules in camtrapReport.

Figure 1 summarises how new modules are added to the report workflow. A module can be defined using R code or a YAML file, registered in the module library, added to the main camReport object, tested separately, and then included when generating the final Ecological Report.

1. List existing modules

Before adding a new module, check which modules are already available in the package.

# List all available modules
list_Modules()

# Show all section names used in the report
section_names()

2. Create a new module YAML file

A module can be written as a YAML file. Figure 2 illustrates how the main components of a YAML module correspond to the content generated in the Ecological Report.

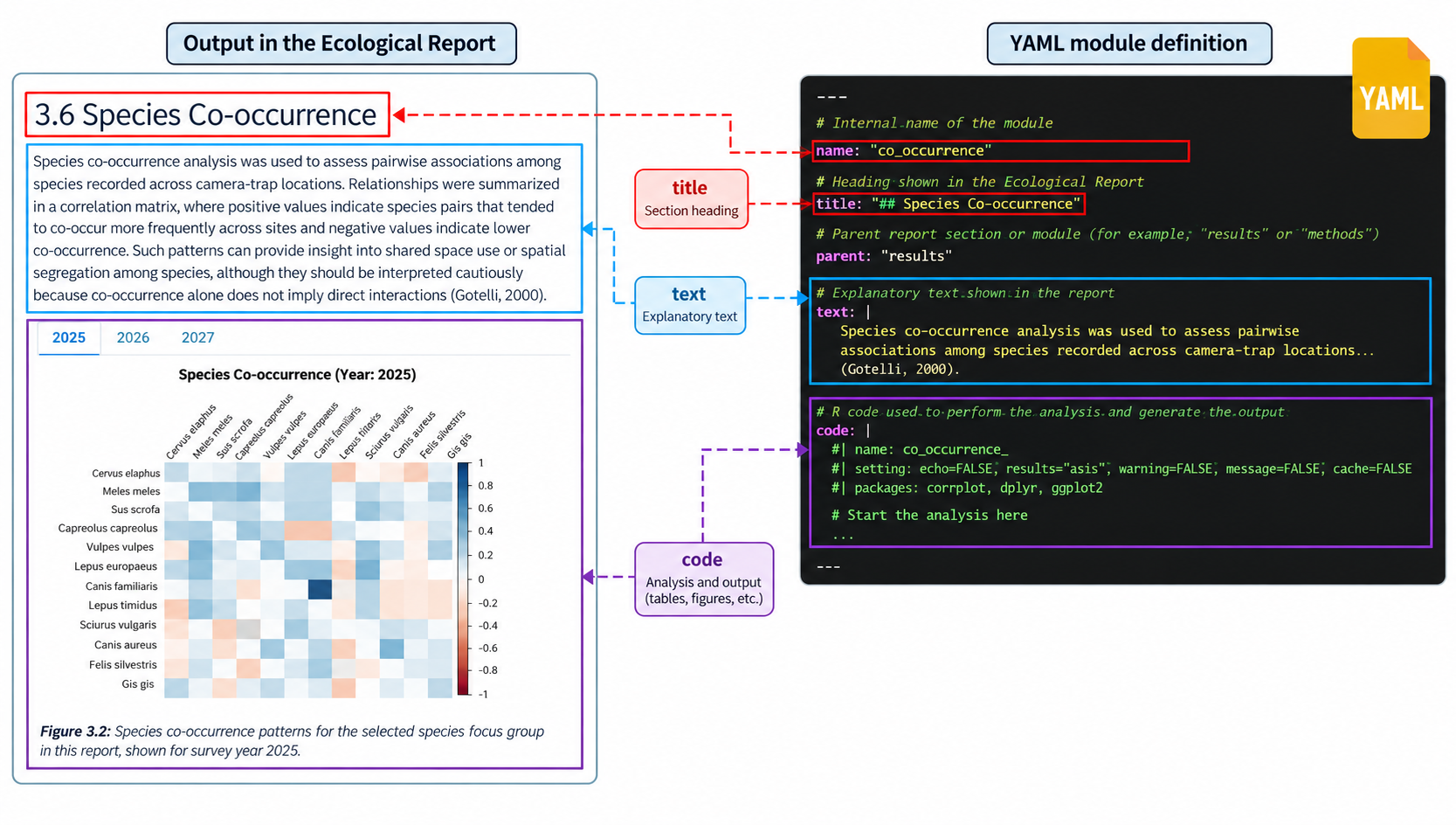

Diagram showing how the main components of a YAML report module correspond to the heading, explanatory text, and analytical output in the Ecological Report.

Figure 2. Relationship between the main components of a YAML report module and its output in the Ecological Report.

The example below defines a simple module called species_table, which adds a species summary table to the Ecological Report.

Create a file called species_table.yml and save it in your working directory.

name: species_table
title: "Species summary table"
parent: "results"
text: "This section provides a summary of the species detected in the camera-trap dataset, including their taxonomy and total number of captures."

code: |
  #| echo: false
  #| message: false
  #| warning: false

  species_table <- object$data_status$Species$Table

  if (!is.null(species_table) && nrow(species_table) > 0) {
    knitr::kable(
      species_table,
      caption = "Species detected in the camera-trap dataset."
    )
  } else {
    cat("No species table is available for this dataset.")
  }

3. Add the new module

Module registries that are changed by users must be kept outside the installed package directory. Start by copying the bundled registry to a writable project directory, then add the new module to that copy. In this example, species_table is placed before the richness section.

# Create a writable project-level module registry once
bundled_modules <- system.file(
  "reportSections",
  package = "camtrapReport"
)
module_dir <- file.path(getwd(), "reportSections")

if (!dir.exists(module_dir)) {
  dir.create(module_dir)
  file.copy(
    list.files(bundled_modules, full.names = TRUE),
    module_dir,
    recursive = TRUE
  )
}

# Add a new module from a YAML file
added <- add_Module(
  x = "species_table.yml",
  before = "richness",
  test = FALSE,
  object = cm,
  dir = module_dir
)

# Check whether the module has been added
list_Modules(dir = module_dir)

You can change before = "richness" to another section name if you want the new module to appear elsewhere in the report.

4. Install module dependencies

When a module is added with add_Module(), its package requirements are registered automatically. Use install_all() to install any missing packages required by the bundled and user-added modules.

# Discover and install all dependencies declared by all modules
install_all()

5. Add the module to the current camReport object

The object returned by add_Module() contains the parsed module. Attach it to the current report object and confirm that it appears in the report catalogue.

cm$addReportObject(added$module)
listReportSections(cm)

6. Test the new module

Before generating the full report, test only the new module. This is useful for checking whether the YAML structure, text, and R code work correctly.

# Test the new module only
testSection(
  added$module,
  object = cm,
  view = TRUE
)

If the module opens correctly in the browser, it can be included in the full report.

7. Generate the full report

After testing, generate the full Ecological Report with the new module included.

# Generate the full report
report(cm, view = TRUE)

This workflow allows users to extend the Ecological Report with project-specific outputs, additional summaries, new figures, or custom interpretation sections.

Reordering, removing, and restoring modules

Module changes can be inspected and reversed before anything is deleted permanently:

# Validate active module definitions and inspect the hierarchy
list_Modules(validate = TRUE, dir = module_dir)

# Move a module within the report hierarchy
move_Module(
  "species_table",
  after = "captures",
  parent = "results",
  dir = module_dir
)

# Move a module and its children to the module trash
remove_Module("species_table", recursive = TRUE, dir = module_dir)

# Inspect active and deleted modules
list_Modules(include_trash = TRUE, dir = module_dir)

# Restore a removed module
restore_Module("species_table", test = TRUE, dir = module_dir)

empty_trash() permanently deletes trashed module definitions and should only be used after confirming that the YAML files are backed up elsewhere. After any registry change, recreate or rerun setup() on the camReport object, confirm the selected sections with listReportSections(cm), test affected modules, and generate the complete report in a new output file. Review the resulting text, tables, figures, warnings, and citations as carefully as any manually written scientific analysis.
